Roll Bar vs Roll Cage: What Each One Does and What HPDE Rules Actually Require

What Is the Difference Between a Roll Bar and a Roll Cage?

The difference is structural, not cosmetic. A roll bar is built around one main hoop that sits behind the driver and passenger, normally with rear braces running back into the chassis. A roll cage keeps that main hoop and adds a front hoop over the windshield area, side protection through the doors, and additional braces. The SCCA Time Trials safety rules describe a cage as needing a main hoop, front hoop, side protection and braces, which is a clean working definition of where a bar stops and a cage begins.

Sanctioning bodies treat the two differently, and that is what most drivers are really asking about. In SCCA Time Trials, Safety Level 2 generally means an appropriate racing-specific seat, a 4-point roll bar, a 5-point racing harness, arm restraints or a window net, and fire-retardant helmet and clothing. Safety Level 3 is the full cage, comparable to SCCA Road Racing, and applies to motorsports-specific vehicles running non-DOT tires at National events. Getting a car to Level 2 is a bar and harness conversation. Getting it to Level 3 is a cage conversation, and those are not the same build, the same budget or the same weekend.

What Does a Roll Bar Actually Do in a Car?

A roll bar exists to protect the survival space above the driver’s head. That is why the height rule matters more than anything else on the part. SCCA Time Trials Safety Level 2 states that the top of the roll bar must be above the top of the driver’s helmet when the driver is in a normal driving position. A bar that clears the roofline but not your helmet is not doing the job it was bought for, and in a tall driver or a car with a lowered seat that check fails more often than people expect.

The same rules set the vertical members more than 15 inches apart measured inside dimension, and call for seamless or DOM mild steel tubing in SAE 1010, 1020 or 1025, or alloy steel tubing in SAE 4130, with diameter and wall thickness scaled to the weight of the car. Anything a helmet can reach has to be padded with a non-resilient material such as Ethafoam or Ensolite at a minimum thickness of half an inch. A pool noodle is not padding, and failing tech over something that takes ten minutes to correct is a poor way to spend a track day in a season this short.

What Does a Roll Cage Do That a Roll Bar Does Not?

A cage carries the protection forward and sideways. Because it includes a front hoop and door bars, it defends the driver in impacts a rear hoop cannot reach, and because it ties into more chassis points it noticeably stiffens the shell, which changes how the car responds to alignment and corner balancing work. For open cars with a windshield, SCCA Time Trials Safety Level 3 requires the top of the main hoop to be at least 2 inches above the driver’s helmet. The padding standard is stricter too, at a minimum of one inch of material anywhere the driver can make contact with the structure.

A cage also costs you things. Getting in and out is harder, the cabin is less pleasant on a street car, and every bar near your head is a bar that has to be padded and a helmet you have to keep away from it. That trade is why plenty of Northeast Ohio drivers run a correctly specified bar for several seasons before a cage ever becomes the right answer.

Do You Need a Roll Bar for an HPDE Track Day?

For most closed-roof cars in beginner and intermediate HPDE run groups, factory rollover structure is what organizers expect and no aftermarket bar is required to get on track. The question changes as soon as the roof comes off or the run group gets faster. NASA’s Club Codes and Regulations state in section 11.4.7 that all open cars should have a roll bar installed to help protect the occupants from injury during a roll-over. Section 4.5.11 is firmer about the other seat, stating that passengers are not allowed in open-top cars that do not provide rollover protection for the passenger side of the car, using an original Shelby Cobra as its example.

Rulebooks are revised between editions, and the edition that matters is the one in force on your event date. Read the current rulebook for the organization running your event rather than a summary of it, and if you are not certain your car passes, have it inspected before you tow four hours to find out in the tech line.

What Are the NASA Roll Bar Requirements for HPDE?

NASA’s requirements sit in section 11.4.7 of the Club Codes and Regulations. Beyond requiring a bar in open cars, the rule is specific about how the bar is built. The main hoop shall be one continuous piece with smooth mandrel bends and no evidence of crimping or wall failure, and all welds should be of the highest possible quality with full penetration. That sentence alone disqualifies a lot of used bars bought sight unseen, because a crimped bend or a cold weld is not something anyone can put right in the paddock on Saturday morning.

The same section names example bars, including Hard Dog, AutoPower Street Roll Bar variants and Blackbird Fabworx products, while stating plainly that those roll bars are examples only and that NASA does not endorse any brand or model. Treat that as a starting point for research rather than a shopping list, and confirm that whatever you fit suits your specific chassis and seating position.

What Are the SCCA Roll Bar Requirements for Track Events and Time Trials?

SCCA splits its requirements by safety level. At Safety Level 1, which covers the entry rung of the ladder, a bar is not mandated for most cars, but when one is present it must be properly installed and securely attached, and any part of it that the driver’s head can contact must have padding. Level 2 is where the 4-point bar becomes part of the package alongside a racing seat, a 5-point harness and arm restraints or a window net. Level 3 is the full cage.

SCCA also issued a clarification on 1 June 2022 that restored two provisions which had been left out of the Track Event rules. The padding requirement, written as 1.2.1.B, calls for non-resilient material such as Ethafoam or Ensolite at a minimum thickness of half an inch on any part of the main hoop a helmet can contact, with padding meeting SFI spec 45.1 or FIA 8857-2001 strongly recommended. The second, 1.2.1.C, allows convertibles to run a roll bar that meets the Time Trials Safety Level 2 standards for material and construction.

Does a Convertible Need a Roll Bar for Track Days?

Convertibles are where most of these questions actually start, and SCCA draws its line at model year 2006. A pre-2006 convertible needs rollover protection that is one of three things: documented factory protection, a commercially produced roll bar appropriate for track use, or a bar built to Safety Level 2 standards for material and construction. From 2006 onward the car needs documented factory or commercial protection unless it qualifies for an exemption, which covers six-cylinder cars with an original naturally aspirated drivetrain and cars of four cylinders or fewer with an original drivetrain, including forced induction.

In Northeast Ohio paddocks that usually turns into the Miata question. An NA or NB Miata is a pre-2006 convertible, so one of those three routes has to be documented before tech rather than argued at the table. Atomic Autosports performed a NASA tech inspection on a 2006 Mazda Miata alongside rear wheel bearing replacement, ARP wheel studs and a full alignment, which is a fair picture of what a Miata tends to need going into a season rather than a bar considered in isolation.

What Does a Roll Bar or Roll Cage Installation Involve at Atomic Autosports?

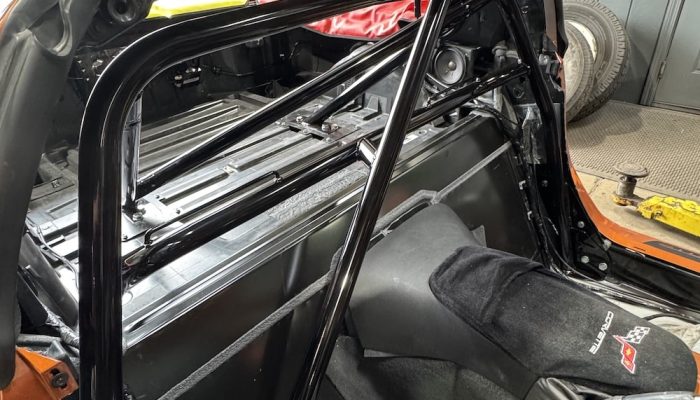

Most of the work is verification rather than tube. On a 2007 Chevrolet Corvette being prepared for track use, Atomic Autosports installed a client-supplied roll cage and verified the installation for proper torque and technical specifications, then carried out a vehicle safety and track inspection, a four-wheel motorsports alignment and an electronic steering calibration so the stability control system agreed with the new alignment. That order matters. A cage changes chassis stiffness, so alignment and corner balance belong after the structure is in, not before it.

The scope moves with the car. On a 2013 Mazda 2 built to B-Spec, the shop installed a NASA compliant safety roll cage along with a battery cut off switch and a Lifeline fire suppression system, which is the full competition package rather than an HPDE bar. On a 2002 Corvette Z06 the safety work began with a Brey-Krause harness bar, floor mounts and racing seats with harnesses, which is the step many drivers take first. Owner Bill Snow’s own 1986 Mazda RX-7 was built from an empty shell and won its class in the SCCA Club Race Experience Enduro at Nelson Ledges, so the cage conversation at this shop is not a theoretical one.

Should You Install a Roll Bar Before the Rules Require One?

There is a practical argument for going early. A bar fitted in the off season is measured, padded and inspected on your schedule instead of in a tech line, and it removes the ceiling on which run groups and which organizations you can enter next year. In an open car it also settles the passenger question, which is the difference between an instructor being able to ride with you and not.

There is an honest argument against it as well. A bar adds weight, it makes a street car harder to live with, and a badly specified one can be worse than nothing if the top of it sits below your helmet. The right answer depends on the car, on where your helmet sits in that seat, and on where the season is going. Apex Club members get an annual one-on-one consultation for car setup, maintenance and race prep, which is a sensible place to have that conversation before anything is bought, alongside priority booking on 24 hour notice and 15% off parts, labor and trackside support through the year. Several episodes of the Late to Grid podcast cover the same ground with drivers who have already made the call.
