GR86 and BRZ Accusump Setup: What an Oil Accumulator Does and How We Install One

How It Works

What Does an Accusump Do on a GR86 or BRZ?

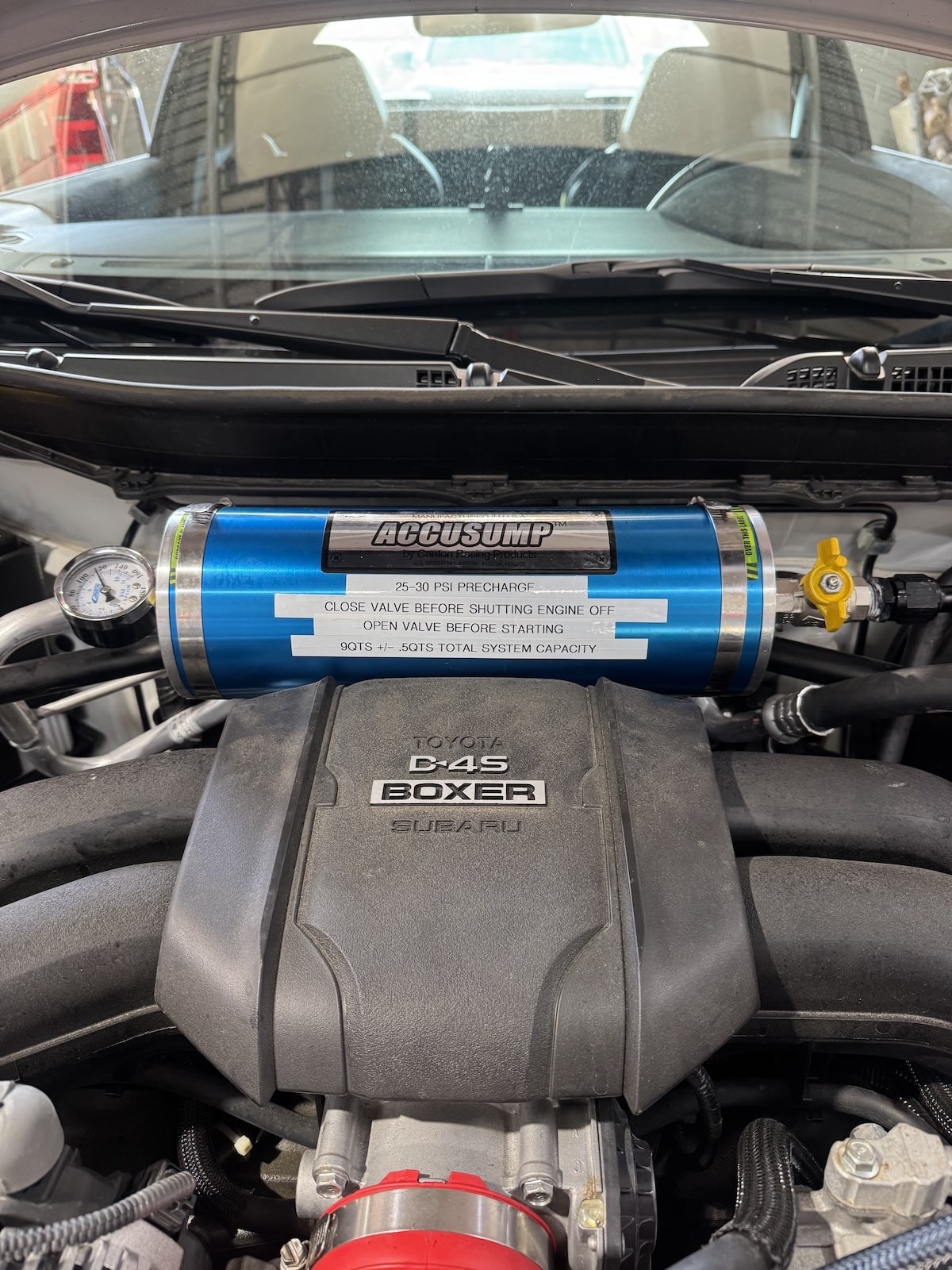

An oil accumulator is a simple device solving a specific problem. Inside the cylinder, a piston separates a volume of engine oil from a charge of compressed air. While the engine is running normally and oil pressure is healthy, the oil side fills and the piston sits under load. If pressure at the pump drops, the stored oil is pushed back into the system and holds pressure through the gap. It is not a power adder and it will not make a GR86 faster down a straight. It exists to keep oil where it belongs during the seconds when the pump is not getting a clean supply.

That is why accumulators show up on cars that see real track use and not on cars that only see the street. A commuter never generates the sustained lateral load that moves oil away from the pickup. A car doing twenty minute sessions does it every lap.

The setup work matters as much as the part. An accumulator has to be mounted somewhere it can be reached, plumbed into a live oil port, and given a valve arrangement that opens and closes when it should. It also has to be pre-charged correctly, because an accumulator with the wrong air charge either fails to discharge when it is needed or dumps its oil at the wrong moment.

The Platform

Why Do GR86 and BRZ Owners Add an Oil Accumulator Before Track Days?

The FA24 in the current GR86 and BRZ, and the FA20 in the earlier 86 and FR-S, sit in cars that are light, balanced and very good at carrying speed through long corners. That is the whole appeal of the platform, and it is also the condition that makes oil control worth taking seriously. Owners in this community talk about oiling before they talk about power, and the cars that arrive at our shop for track preparation usually arrive with oiling already on the list.

We see the same conversation in the Northeast Ohio paddock. The customer has done a few HPDE weekends, the car is getting quicker, sessions are getting longer, and the question shifts from how to go faster to how to keep the engine healthy while going faster. An accumulator is one of the answers people land on, alongside an oil cooler and a properly sealed oil pan.

Engine Protection

Why Do We Pull the Oil Pan and Clean the Pickup Tube on an FA24?

This is the part of the job that never shows up in a photo and matters more than most of what does. On this GR86 we removed the oil pan, cleaned the RTV sealant debris from the oil pickup tube, resealed the pan, and replaced the exhaust manifold and catalytic converter gaskets on reassembly. We treat that as preventative maintenance on the FA24D rather than a repair, and we have done the same work on other cars on this platform, including a 2024 GR86 Base that went through a complete suspension and drivetrain build with us.

The logic is straightforward. An oil pickup that is partially obstructed reduces the margin the oiling system has before anything else goes wrong, and no accumulator or cooler compensates for a restriction at the source. If a car is going to see track use, the pickup gets checked first and the accumulator goes on after.

Pressure vs Temperature

Does an Accusump Replace an Oil Cooler?

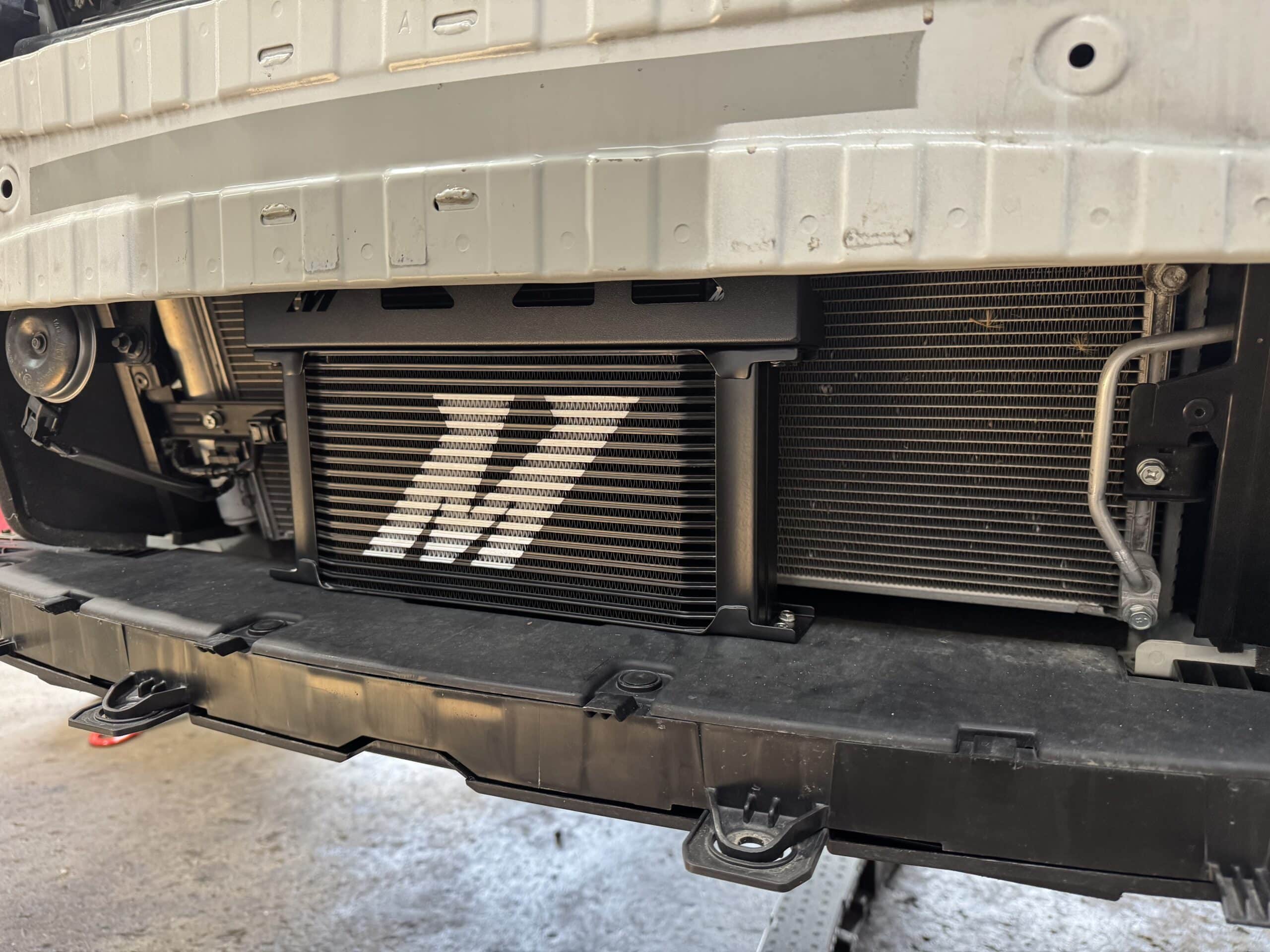

No, and treating them as alternatives is the most common misunderstanding we hear. They address different failures. An accumulator answers a pressure problem, holding oil pressure through a momentary loss of supply. A cooler answers a temperature problem, keeping oil viscosity and oil life where they should be through a long session in summer heat. A car can have healthy oil pressure and cooked oil, or cool oil and a pressure drop in a fast corner.

On the GR86 builds we have completed, both have been fitted. The car described above received an owner supplied cooler alongside the accumulator. A separate 2024 GR86 that came through for a full build received a Jackson Racing oil cooler kit as part of the same reasoning, along with a complete oil pan reseal and pickup tube clean, an OS Giken limited slip differential, and a corner balance and motorsports alignment once the suspension was finished.

Beyond Oiling

What Else Goes Into a Track Ready GR86 or BRZ Build?

Oiling is where the platform gets attention, but it is rarely the only thing a car needs. One 2024 GR86 Base build in our shop covered nearly the entire suspension, including Ohlins coilovers assembled and installed with the initial ride height set, adjustable front and rear lower control arms, rear upper control arms, rear traction arms, rear toe arms, adjustable tie rods, upgraded front and rear sway bars with new rear stabilizer links, and a rear strut brace fitted with custom trim work so it sat clean in the trunk. That car finished with a corner balance and a motorsports four wheel alignment, which is the only way to know what all of those adjustable parts are actually doing.

Another GR86 came in for an upgraded big brake kit front and rear, extended wheel studs, tires and a brake master cylinder brace. On the Subaru side, a 2020 BRZ came through for a clutch inspection with a new forged shift fork and throw out bearing and a full clutch bleed, and a 2025 BRZ, a mostly stock street car, came in for tires and an alignment. The older cars are still in the rotation as well, including a 2013 Scion FR-S that received a Borla S-Type cat back exhaust and a 2012 FR-S autocross car that gets fresh cam bolts front and rear, because they are prone to slipping under racing abuse.
